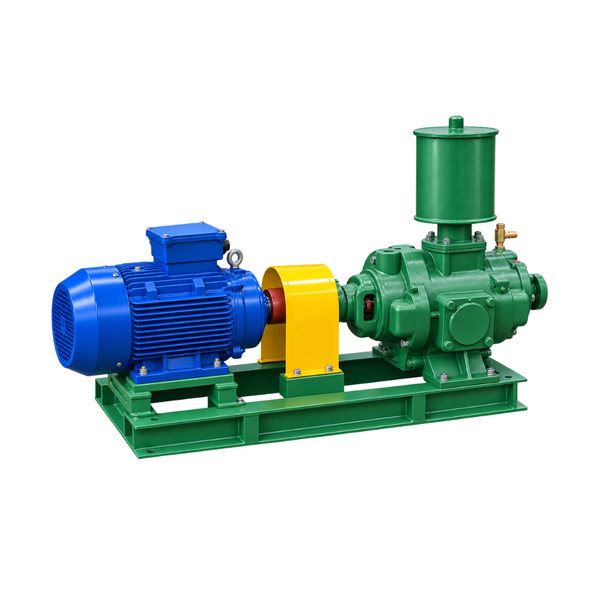

The VVN 1-6 liquid ring vacuum pump is designed to generate vacuum by evacuating air, non-aggressive gases and gas-vapor mixtures from closed industrial equipment and process systems.
The pump operates using the liquid-ring principle. The operating liquid forms a ring inside the pump casing, enabling continuous suction and compression of the gaseous medium. This design makes the VVN 1-6 suitable for various industrial vacuum systems and process equipment.
The VVN 1-6 has a nominal pumping capacity of 6 m³/min (360 m³/h). The maximum pump power consumption is 9.6 kW, while the standard electric motor power is 15 kW. The unit operates at 1500 rpm.
Technical specifications
| Specification | Value |
|---|---|
| Type | Liquid ring vacuum pump |
| Model | VVN 1-6 |
| Nominal capacity | 6 m³/min |
| Capacity | 360 m³/h |
| Nominal capacity | 0.1 m³/s |
| Electric motor power | 15 kW |
| Maximum pump power consumption | 9.6 kW |
| Rotational speed | 1500 rpm |
| Maximum water consumption | 0.66 m³/h |
| Voltage | 380 / 220–380 V |
| Frequency | 50 Hz |
| Pumped medium | Air, gas |
| Pump design | Vacuum pump |
