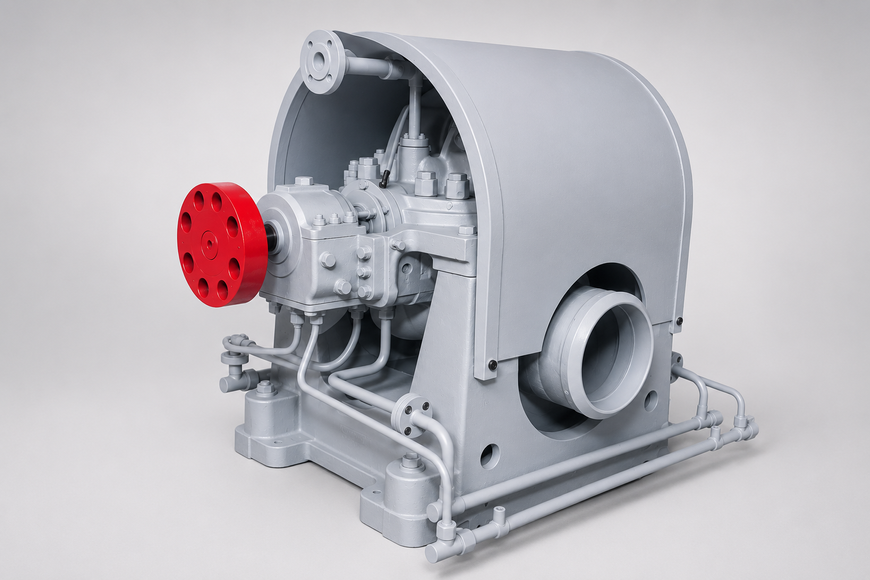

PD 650-160-2 Pump
The PD 650-160-2 is a horizontal single-stage centrifugal booster pump with a double-suction impeller, designed to supply feed water to the main boiler feed pumps at thermal power plants. Its robust construction ensures reliable operation, high efficiency, and excellent cavitation resistance.
The PD 650-160-2 is widely used in power generation facilities where continuous operation, high performance, and dependable water supply are essential.
Key Benefits:
- High hydraulic efficiency and low energy consumption.
- Double-suction impeller reduces axial thrust.
- Reliable design for continuous heavy-duty operation.
- Low vibration and stable performance.
- Easy maintenance and long service life.
Technical Specifications:
- Rated capacity: 650 m³/h
- Head: 158 m
- Speed: 2970 rpm
- Maximum power consumption: 372 kW
- Efficiency: up to 86%
- Pumped media: clean water, hot water, and boiler feed water.
- Maximum liquid temperature: up to 180°C.
Applications:
- Thermal power plants (TPP);
- Boiler feed water systems;
- Industrial water supply systems;
- Power generation facilities.
